0.15μF 154K 440VAC MPX X1 MKP Safety Capacitor | SRD

– Type: Metallized polypropylene (MKP) film interference suppression capacitor
– Safety class: X1
– Capacitance: 0.15 μF (150 nF) ±10%, 154K

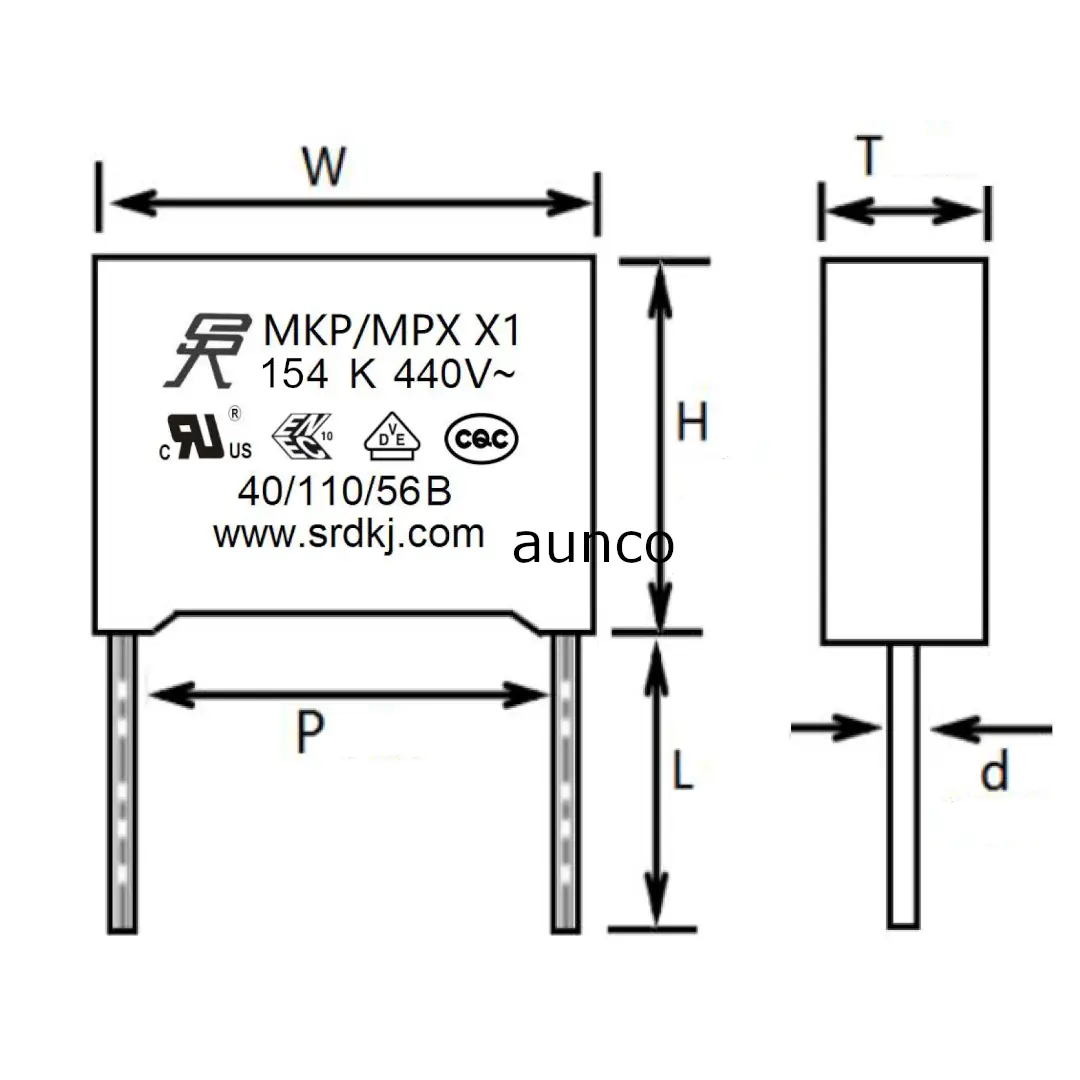

– Case dimension (W x H x T): 17.5 x 13.5 x 7 mm
– Rated voltage: 440 VAC
– Smaller size-to-voltage ratio from improved technology
– Dielectric: Polypropylene film
– Electrode: Metal vacuum evaporation layer
– Encapsulation: Plastic case with flame-retardant epoxy resin sealing
– Lead length(L): 18.5 mm; Lead diameter(d): 0.8 mm; Lead spacing(P): 15 mm
– Weight: 2.2 g
– Typical applications: Surge suppression, EMI/RFI filtering in AC circuits
– Features: Self-healing, resistant to humidity, resistant to overvoltage
– Climatic category: 40/110/56B
– Compliance: RoHS, UL Recognized, VDE, CQC
– Color: Gray
– Quantity: 1 pc
– Made in China by SRD
