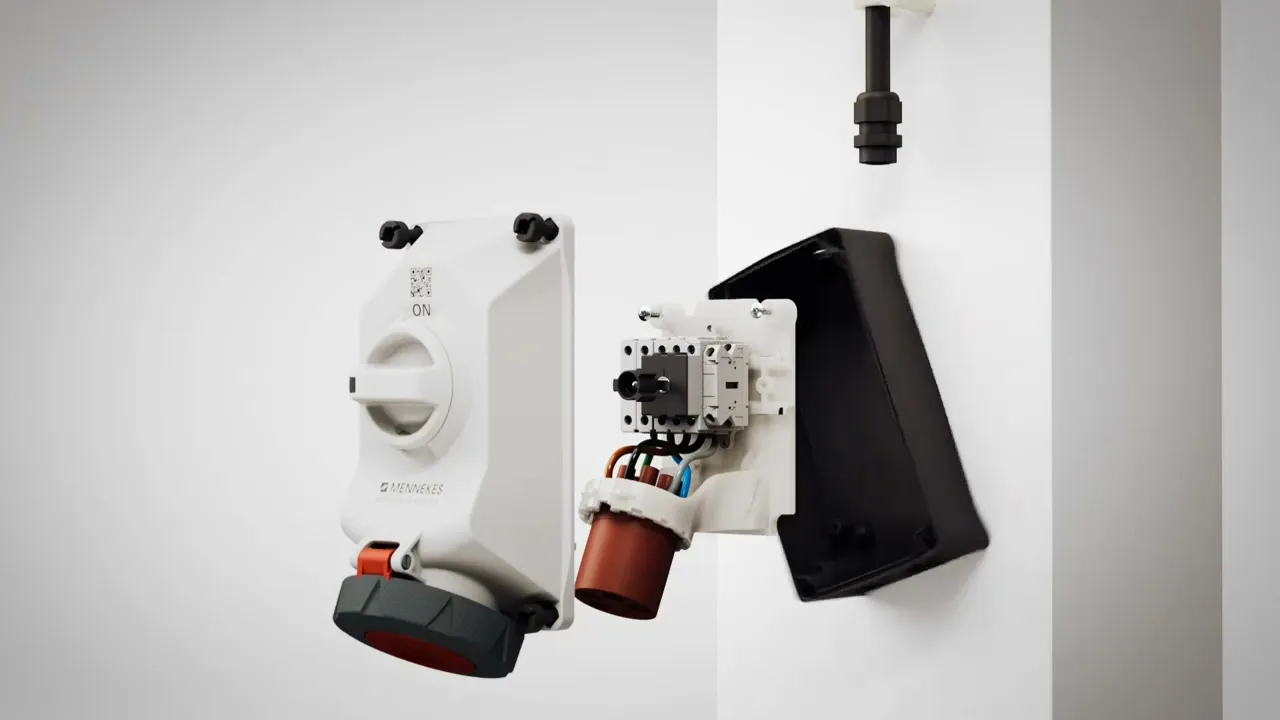

5604506G DUO 32A Wall Mounted Receptacle | Mennekes
3P+N+E 380-415VAC IP67 Switched Socket
✨ Brand new
🛡️ Brand name on the product
🚚 Smnjg Tanah Melayu Malaysia free shipping
Out of stock
– Rotary switch with a hole for LOTO
– X-CONTACT technology: Reducing insertion and pulling force of the plug while still providing safe contact
– Rated current: 32 A
– Rated operational voltage: 400 VAC
– Line-to-neutral voltage: 240 VAC
– Line-to-line voltage: 240 × √3 ≈ 415 VAC
– Network frequency: 50-60 Hz
– Poles: 3P+N+E
– Pins: 5
– Earthing position: 6h
– Permissible ambient temp: -25 to 40 °C
– Ingress protection: IP67
– Impact protection: IK08
– Enclosure material: PC and ASA blend plastic
– Front colour: RAL 7035 grey
– Overall height: 255 mm
– Overall depth: 169 mm
– Overall width: 118 mm
– Made in Germany by MENNEKES
